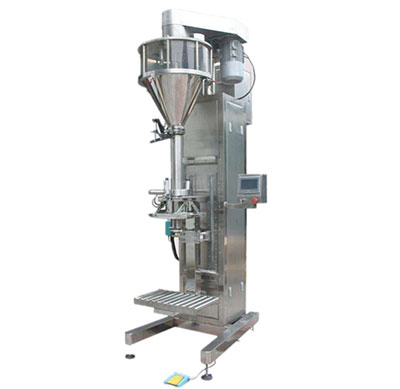

The machine is mainly developed and designed for the ultra-fine powder and and it can meet the high-precision packaging requirements. It is suitable for talcum powder, white carbon black, active carbon, putty powder and other ultra-fine powder.
Technical parameters
Measurement method: vertical screw double speed filling
Filling weight: 10-25kg
Packaging accuracy: ± 0.2%
Filling speed: 1-3 bags / min
Power supply: 380V (three-phase five wire), 50 / 60Hz
Overall power: 4kw
Power supply: AC220V / 380V ± 10%, 50Hz (three-phase five wire)
Air source: clean compressed air, pressure 0.6-0.8mpa, gas consumption 0.2nm3/min
Operating weight: 350kg
Total volume: 1000x850x3300mm or customization
German Siemens PLC and Siemens touch screen control
The weighing sensor adopts METTLER TOLEDO brand, which makes the weighing more accurate
Equipped with dedusting interface
