Product description:

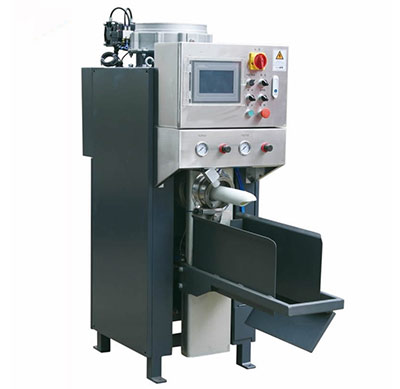

Compressed air valve bag packaging scale is a new type of quantitative packaging scale that has accumulated more than ten years of professional experience, digested foreign advanced technology and combined with China's national conditions. It has a number of patented technologies and has completely independent intellectual property rights. The machine adopts the most advanced low-pressure pulse air-floating conveying technology in the world, and completely uses low-pressure pulse compressed air to uniformly and horizontally convey the material on the ventilating device through a super-abrasion air-floating device with a certain angle, and the material passes through self-adjusting double The stroke gate valve controls the quick feeding and finishing of the material, and the automatic quantitative packaging of the material is completed through the ceramic discharge nozzle and the microcomputer plus the touch screen control. The packaging materials cover a wide range. All powders with a moisture content of less than 5% and a mixture of powder and aggregate (≤5mm) can be automatically packaged, such as industrial micropowder products, powdered pigments, powdered chemical products, flour and food. Additives, as well as ready-to-mix dry mortars (special mortars) of all varieties.
Technical Parameter:
Packing capacity: 3-6 bags / min (Note: different material packaging speed is different)
Accuracy level: +/-0.5%
Weighing range: 20-50Kg/bag
Graduation value: 10g
Aggregate in packaging materials: ≤Φ5mm
Working power supply: AC 220V/50Hz 60W (Or according to the customer's requirement)
Working gas source:
Air pressure ≥0.5-0.6Mpa
Air consumption 0.2m3/min Dry compressed air
Dust collection air volume: ≥2000m3/h
Ceramic nozzle size: Φ63mm (can be adjusted according to customer needs)
Valve pocket pocket size: ≥Φ70mm
Feed port size: Φ300mm
Standard dimensions: 1500mm × 550mm × 1000mm
